Yamata FY810 Industrial Post Bed Sewing Machine

The Yamata FY810 is an industrial post bed sewing machine built for detailed stitching on leather goods, footwear, bags, upholstery, canvas, vinyl, and other medium-weight materials. Its raised post bed design makes it easier to sew shaped, curved, and hard-to-reach areas that are difficult to control on a flatbed machine.

This machine is especially useful for shoe uppers, vamping, space stitching, tipping, bags, leather accessories, canvas products, outdoor gear, and detailed repair work. The roller presser foot helps the material turn smoothly through sharp corners and tight curves, giving makers better control on small parts, curved seams, and precision topstitching.

The FY810 comes as a complete industrial setup with the machine head, table top, heavy-duty plastic legs, servo motor, LED sewing light, drawer, belt, and required hardware. Professional assembly is required.

Built For

The FY810 is designed for sewing light to medium-weight materials including:

Leather, vinyl, upholstery materials, synthetics, canvas, coated fabrics, laminated materials, and similar workshop materials.

Common applications include:

Shoe uppers, shoe vamps, bags, luggage, handbags, leather goods, outdoor gear, canvas products, covers, apparel, rainwear, sporting goods, camping equipment, and upholstery detail work.

Key Features

• Industrial post bed design for curved and dimensional sewing work
• Roller presser foot for tight turns, sharp curves, and detailed stitching
• Single needle lockstitch construction
• Drop feed mechanism
• Vertical axis hook
• Reverse feed
• Servo motor included
• LED sewing light included
• Complete table, legs, drawer, belt, and hardware package
• Great for footwear, bags, leather goods, and specialty sewing applications

Machine Specifications

• Number of Needles: 1
• Stitch Type: 301 Lockstitch
• Feeding Mechanism: Drop Feed
• Max Sewing Speed: 3,000 SPM
• Presser Foot Clearance: 15/64" / 6mm
• Max Stitch Length: 5mm
• Needle System: DP-F22 / 134S
• Bobbin: Pre-Wound G
• Hook: 12032
• Needle Bar Stroke: 1 1/4" / 32mm
• Post Height: 7" / 178mm
• Work Surface: 1 7/8" x 2" / 48mm x 75mm

Package Includes

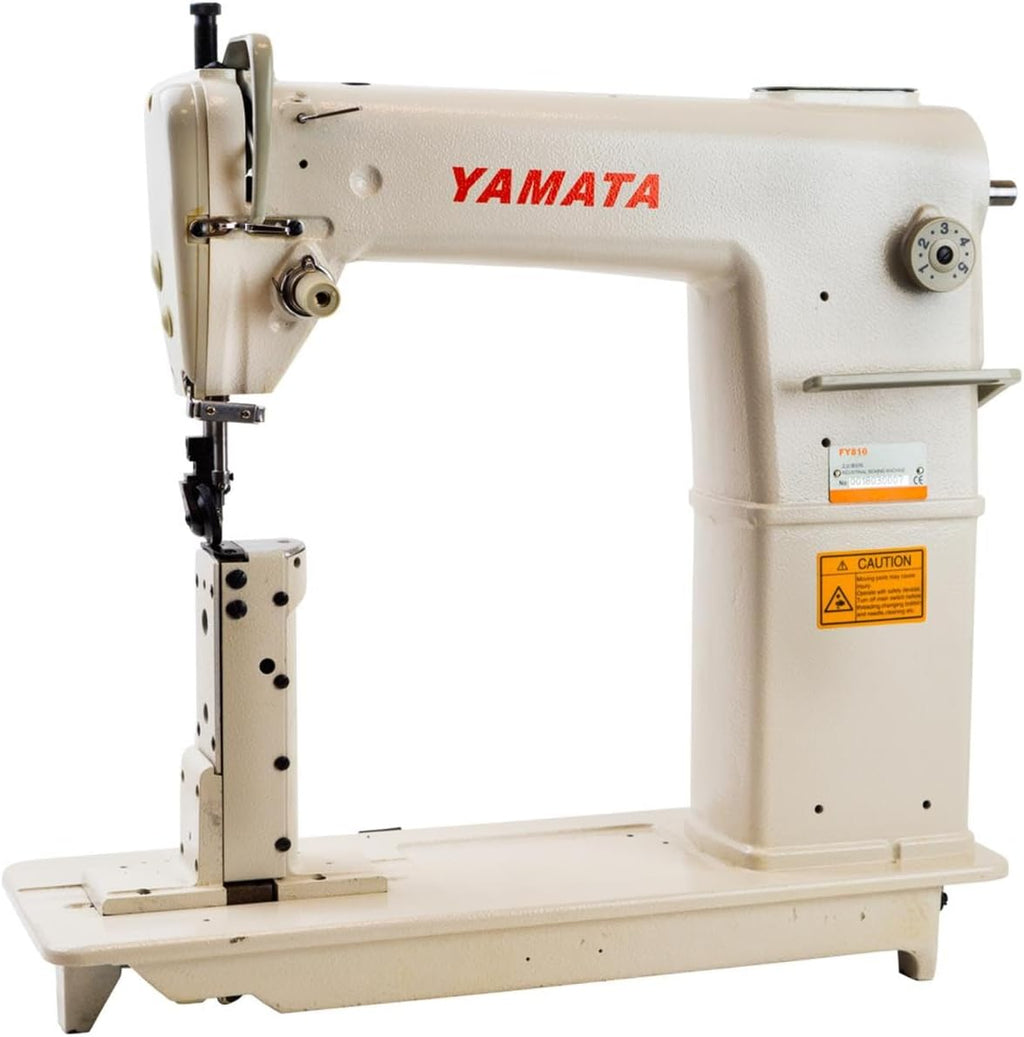

• FY810 machine head

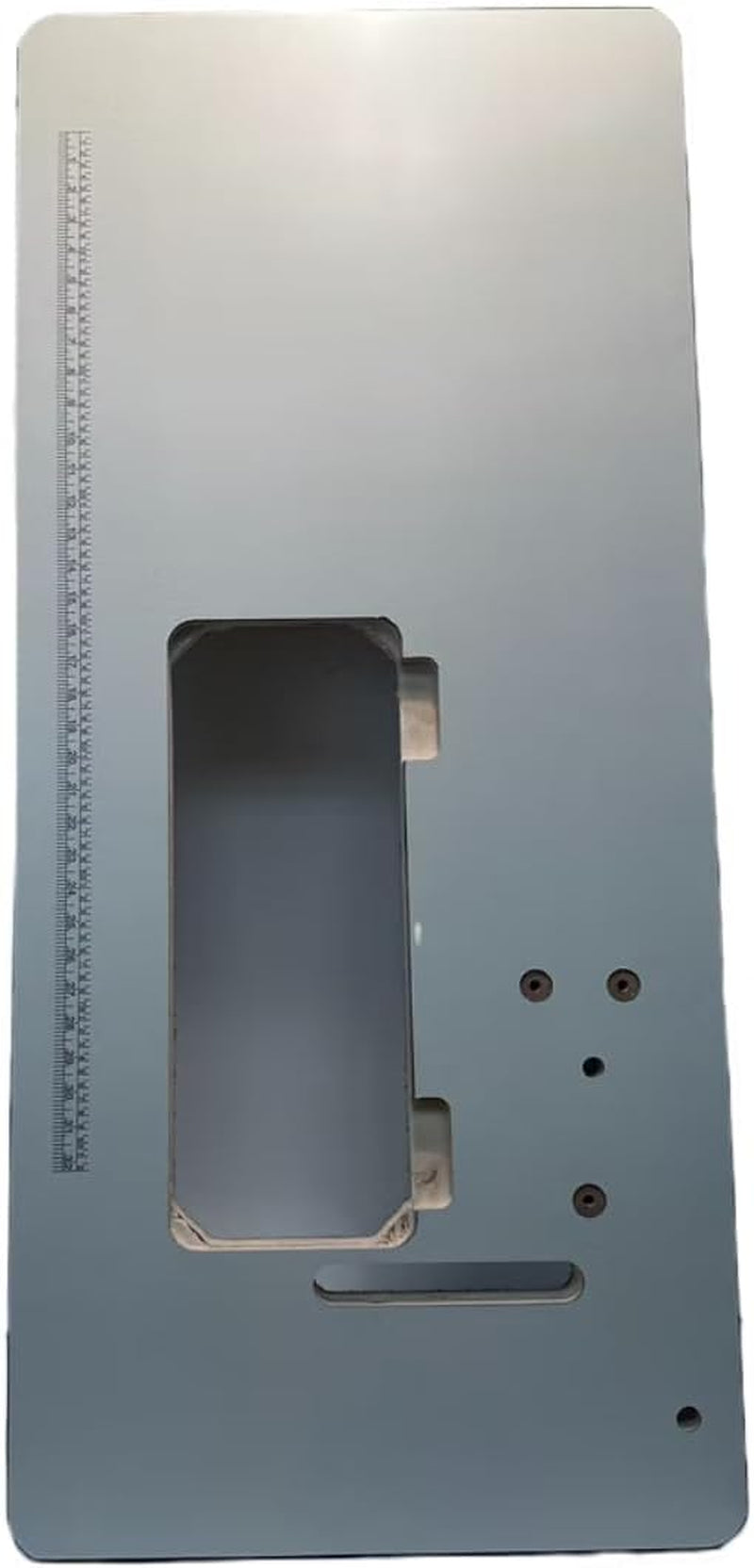

• Table top

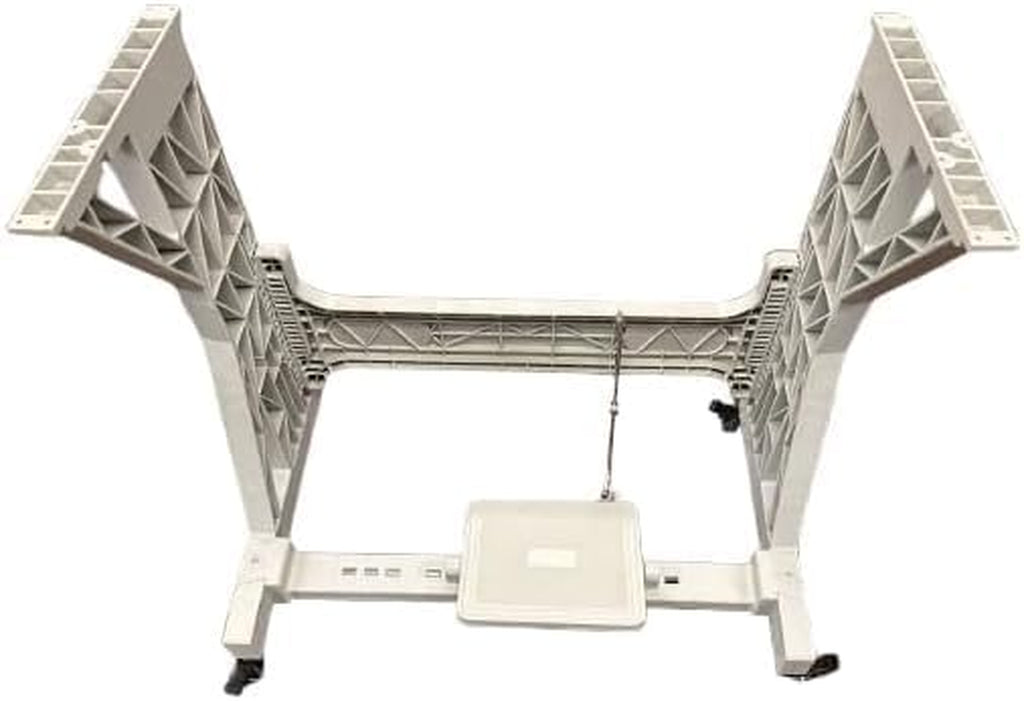

• Heavy-duty plastic legs

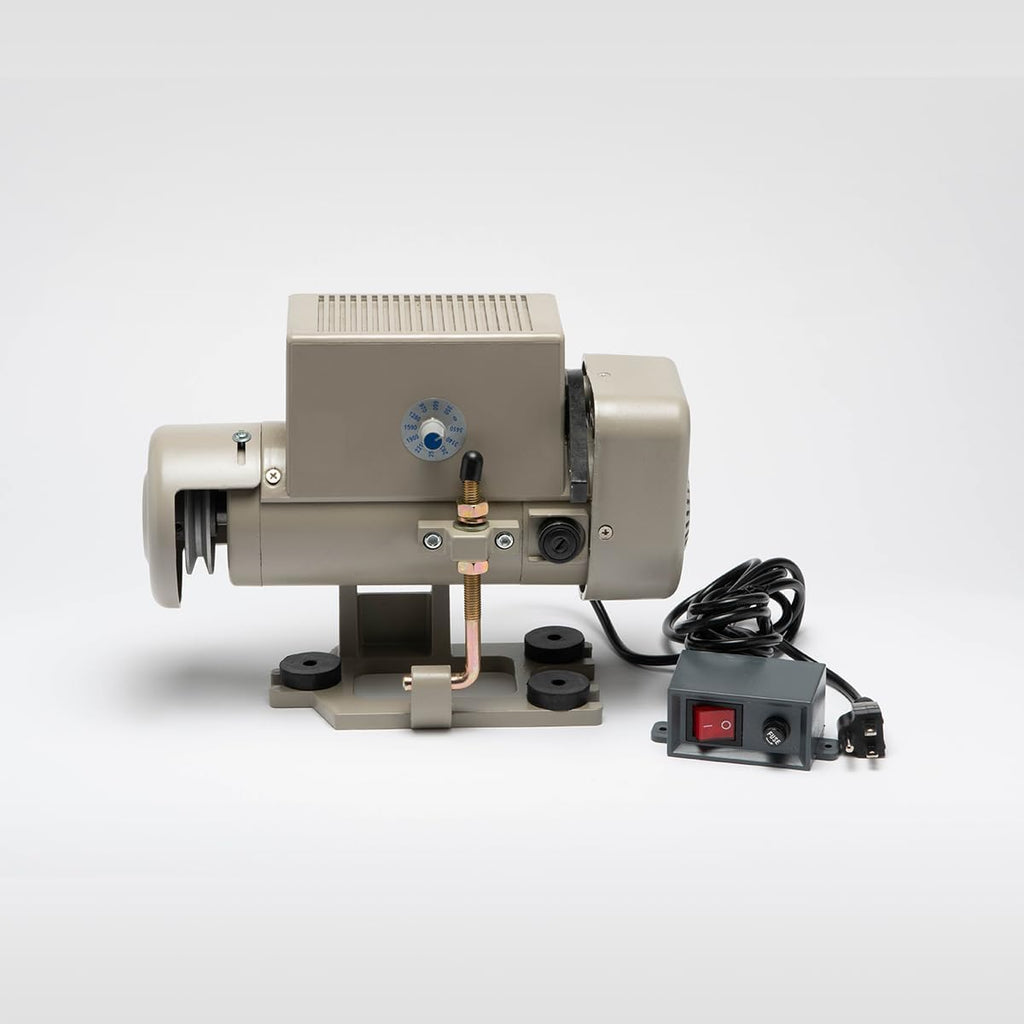

• Servo motor

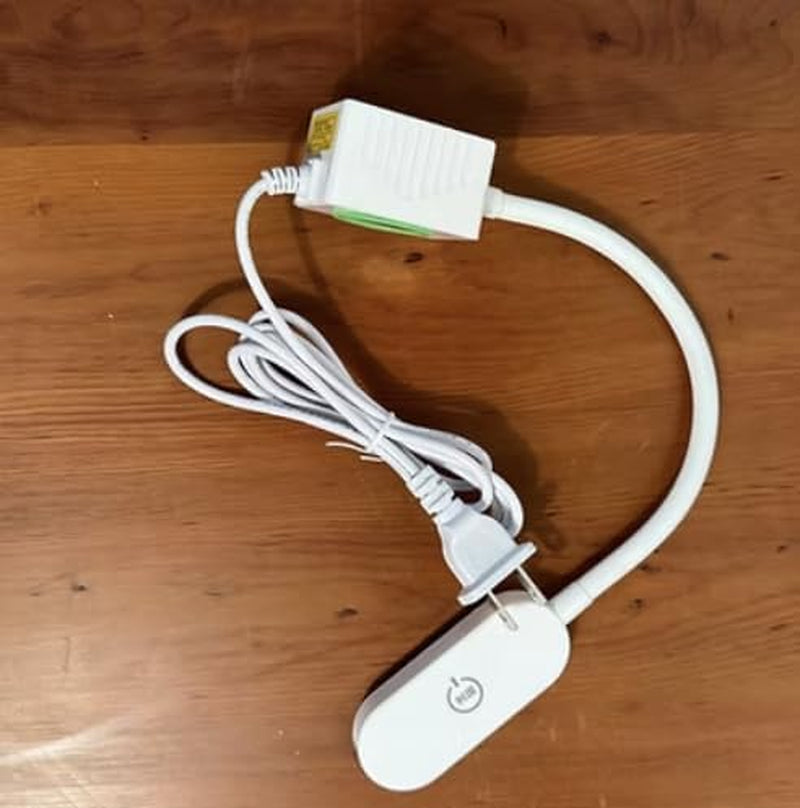

• LED sewing light

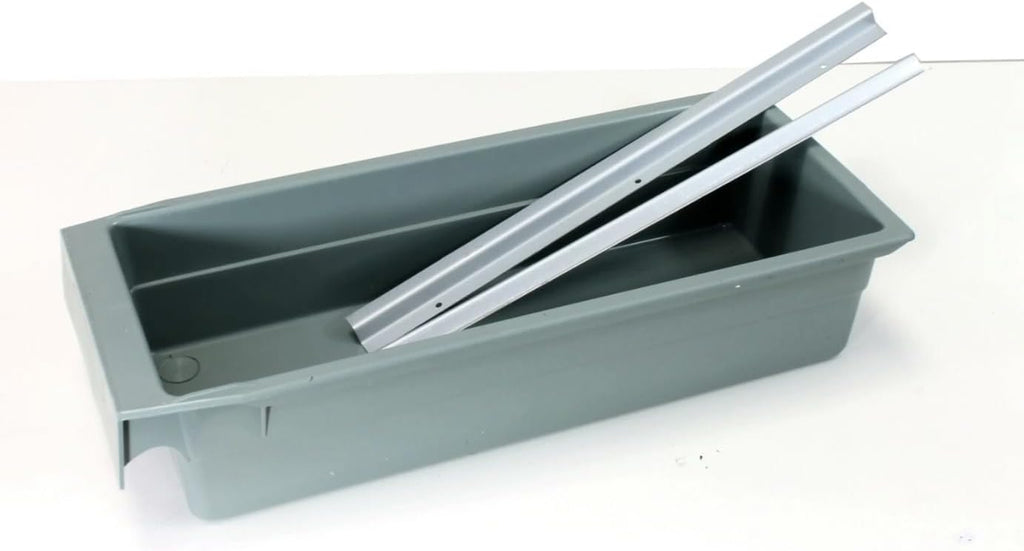

• Drawer
• Belt
• Required assembly hardware

Assembly note: This machine ships as a complete knockdown setup and requires professional assembly before use. Please contact for assembly help.
